Problem

Astra car has a manual transmission. In order to get it to go into 1s / 2nd / reverse you have to pull up the reverse interlock and then 1st gear is where reverse should be. Reverse is even further to the left.

The video below shows this exact problem and they solution the fellow devised.

• YoutubeSearch: problema trambulador astra
• Youtube: astra troca trambuladore

Vectra não entra primeira segunda e marcha ré

2006 Vectra – Video shows more of the same structure in my Astra

Troca do reparo da alavanca do câmbio com sistema à cabo do Celta – Has the exact mechanical mechanism as my Astra

How to remove the console







Astra uses a 2 cable shifting system

This image shows where the cables pass through the firewall.



These are images of the shift lever assembly in my car for use in comparing replacement assemblies.









---

MercadoLivre Parts Kit Images

• MLSearch: astra trambulador
• Conjunto Cabo Do Trambulador Vectra 2006/2010 Novo
• Alavanca De Câmbio Com Cabos Astra 2006 2007 2008 2009 2010
• Kit De Pino E Bucha Da Ponta Do Cabo De Marcha Corsa Celta Astra Zafira Agile Vectra Montana
• Kit Reparo Trambulador Celta Corsa Montana Astra Agile Vectra
• Alavanca De Cambio Completa Astra 2001/2011 94718021
• MLSearch: trambulador astra busha cabo



 4

Console Star Screws – Torx?

6 points

---

Parts were swapped in the cab cage gear shift assembly​

I left the cage in the car rather than try to disassemble the cable to cage connection



After reassembly the shifter was about the same as before. It feels tighter now. I will adjust to test.

Adjustment steps

• set so the transmission is in 1st gear – appears like reverse gear position on the stick in my car.
• Remove the terminal pin to disconnect from transmission lever
• Set the terminal to the unlock position – let terminal rest on the cable end
• Set the stick shift to the normal position for first gear
• Slide the terminal up and mount it to the transmission lever with the terminal pin
• Set the lock on the terminal to lock it to the cable

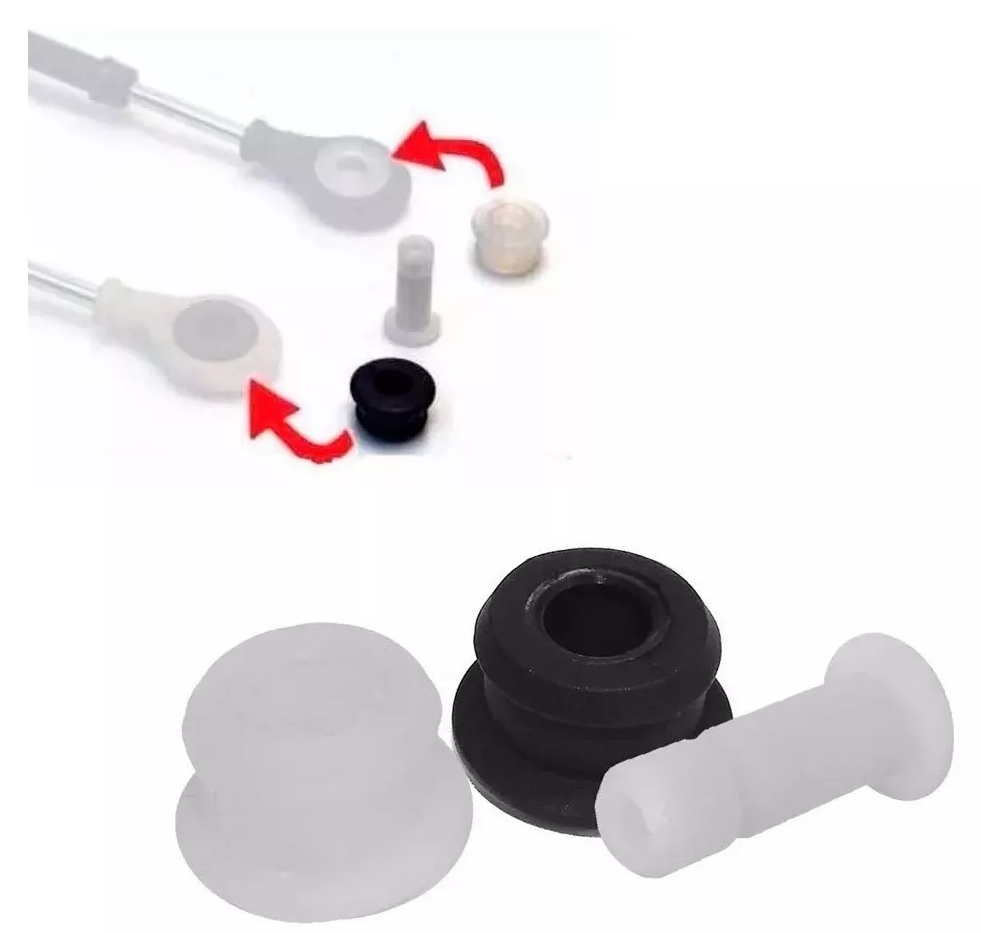

Shifter Cable Bushings in cab end

Pin fell out.  Had to buy another bushing as the one that was there went missing.  Pin did not click into place so I found a screw and washer and threaded it into the plastic pin.









---

Nilo – Urubici

This guy was a bust.  His response was "So nao tem solucao pra morte". That's not the way to win over a customer.
